Description
New cost is approx $16,000.
Cast iron table and frame guaranteeing robustness and stability.
Durable solid steel spiral cutter head for precise, quality cutting, quiet operation and beautiful finish. Six (6) rows of twenty (20) four (4) edge carbide inserts. Quick change of inserts.
Micro-adjustment of the height of the work table.
Independent adjustment of the table height (left-right) thanks to the steering wheels placed at the front to facilitate and speed up the maneuver.
Table assembled on eight (8) support points including five (5) eccentric points for perfect parallel adjustment.
Table for making grooves up to 15 mm.
Tilting guide from 0 ~ 45° and equipped with stops.
Planing width adjustment on rack with handwheel for quick adjustment.

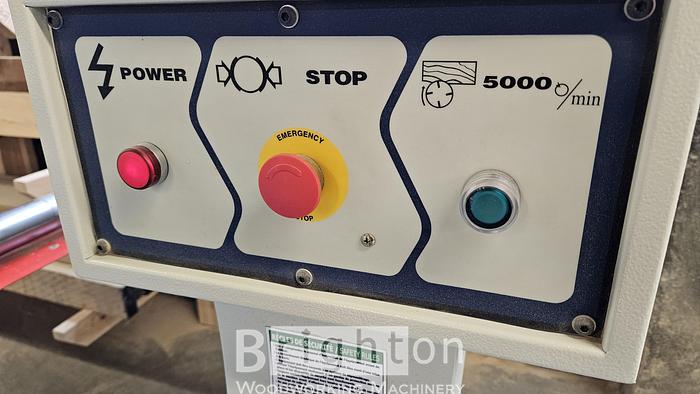

Independent, easy-access control panel with emergency stop button.
Safety guard with adjustable tension ensuring adequate pressure for constant return and maximum safety.
125 mm(D) suction outlet.
Also available: 5CV/230V/60C/1Ph
Specifications:
Motor 7.5HP/600V/60C/3Ph
Cutting head 107(D) x 405(L) mm
Dimensions of the insert knives 30 x 12 x 1.5 mm
Cutting head rotation speed 5000 RPM
Maximum working width 405 mm
Maximum cutting thickness 15 mm
Guide tilt 0 ~ 45°
Work table dimensions 2480(L) x 405(D) x 105(H) mm
Table height 800 mm
Machine dimensions 2500(W) x 1180(D) x 1200(H) mm
Packaging dimensions 2690(L) x 890(D) x 1020(H) mm
Net weight 570 kg / 1254 lb
Gross weight 630 kg / 1386 lb
