Cantek HS-21T Used Line Boring Multi Drilling Machine #BM2684

Description

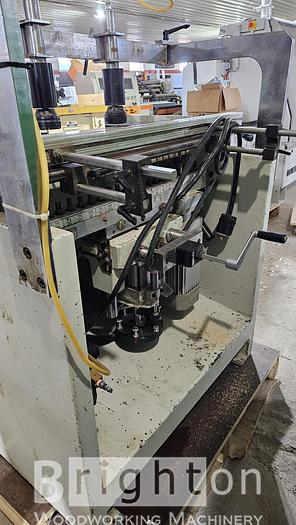

Single line boring machine with 21 spindles at 32mm centers.

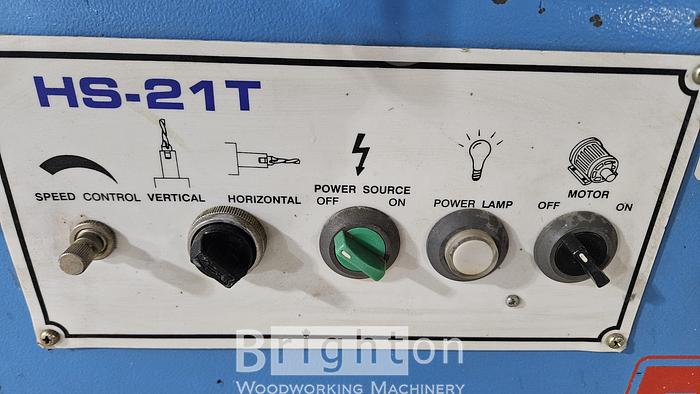

Can be changed from horizontal to vertical drilling by pneumatic setting, and tilted manually for angular drilling.

Pneumatic drilling cycle by convenient foot pedal
Adjustable drill feed speed
Two fences provides convenient positioning of the workpiece
Mechanical digital readouts are provided for precise setting of the boring head
Quick 6-position boring depth selector for fast changeover
Two fold away side fences for end boring or drilling smaller components
3 meter back fence with 4 adjustable stops for line boring or they can be set on the side fence for dowel drilling on the face of the gable
21 quick change chuck for fast changeover

SPECIFICATIONS
Distance between center 32mm
Number of spindles 21
Max. drilling depth 3” (75mm)
Boring head adjustment 0°~90°
Table size 34.33” x 19.3″ (872 x 490mm)
Spindle speed 2800 RPM

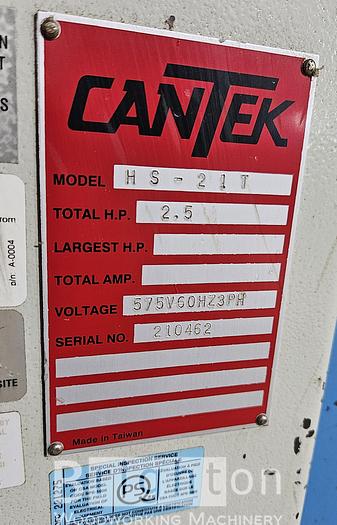

Motor 2.5HP – Voltage 575/3/60
Machine weight 770 lbs (350kgs)
Shipping weight 946 lbs (430kgs)
Machine dimensions 38.11”x32 ¼” x 48” (968x820x1220mm)
Shipping dimensions 45”x35”x54” (1143x889x1372mm)
