Description

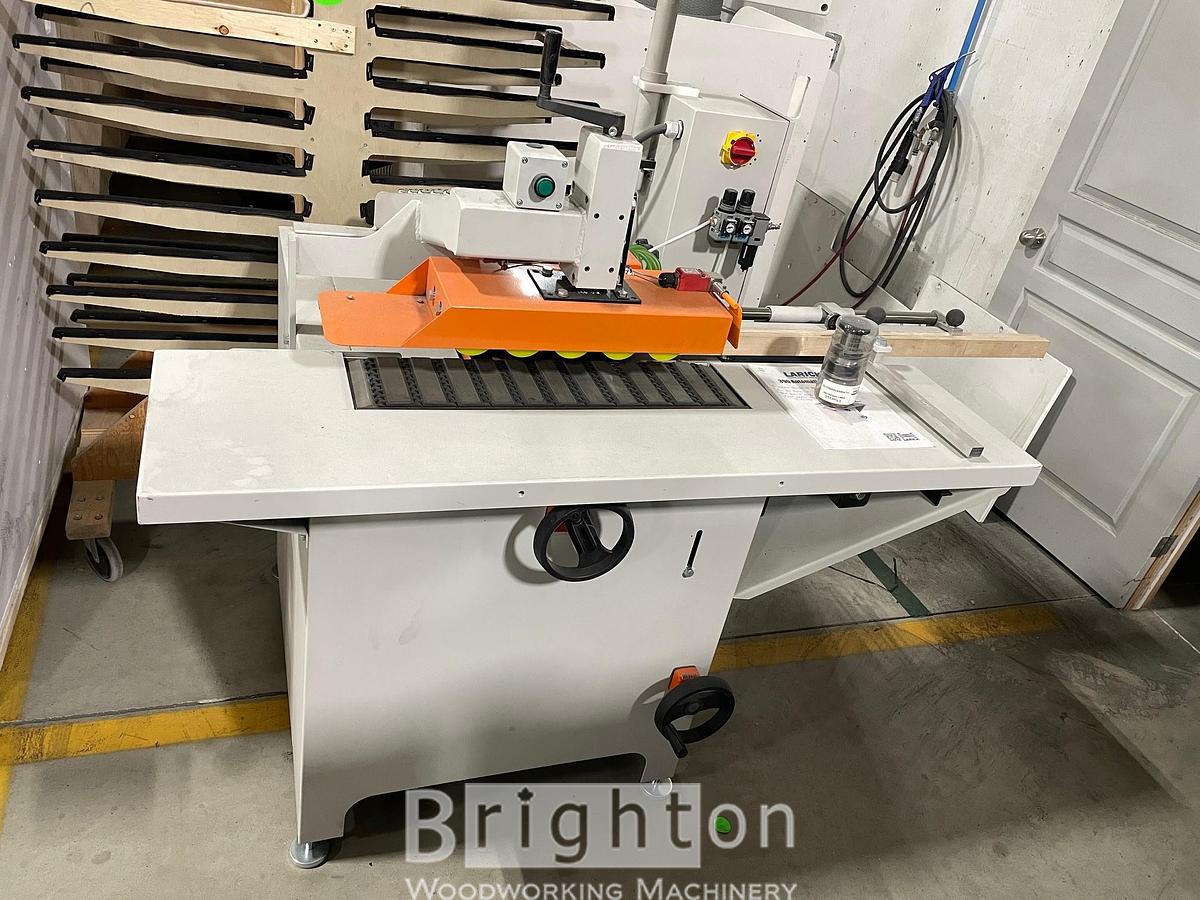

The Larick 390 Ultimate Shaper is an automatic, conveyor-fed machine designed for precision profiling and shaping, specifically popular for handling arched panels and small parts. Built in the USA, it combines the features of a traditional shaper with the high-volume capabilities of an automated system.
- Ideal for Small Parts & Arches: Because it is conveyor-fed, it can easily handle small, intricate, or pre-arched panels that are difficult to manage with conventional machinery.

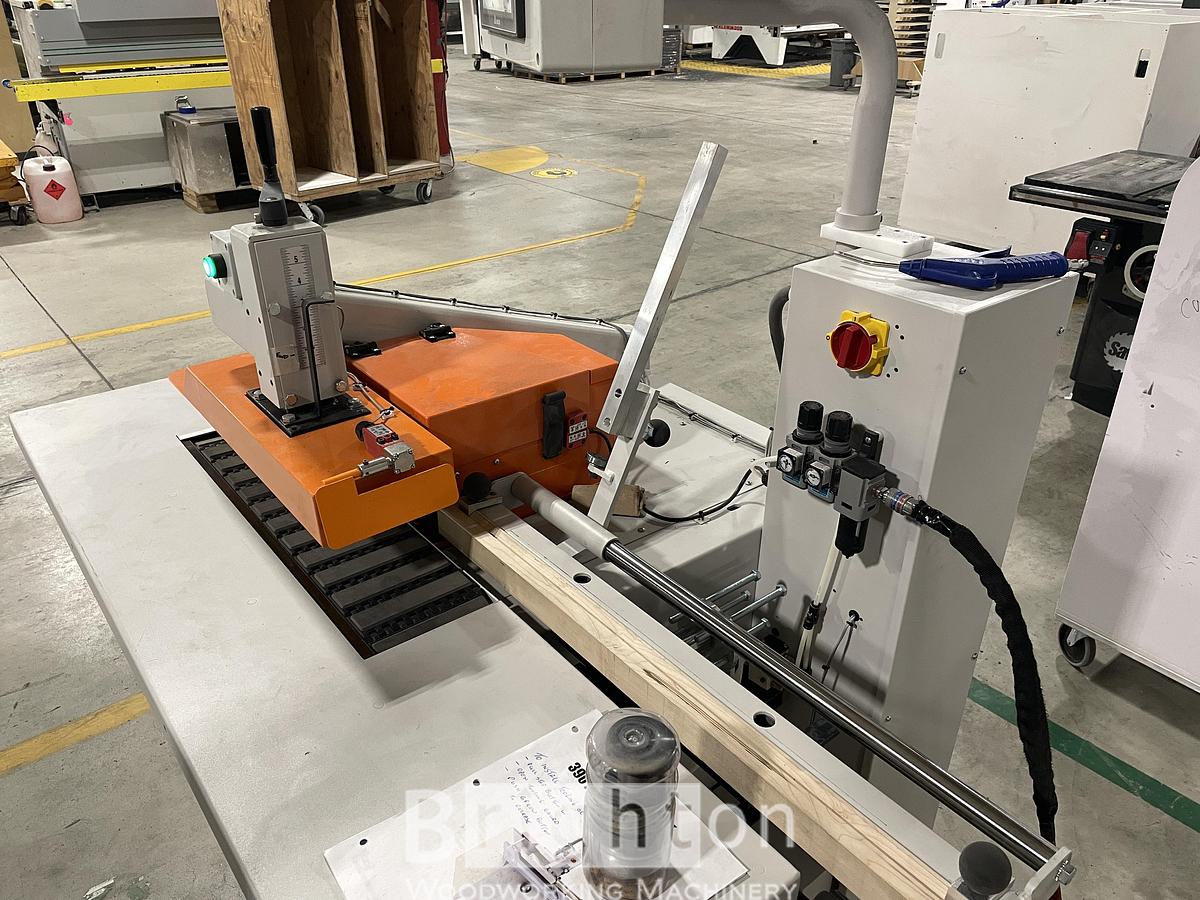

- High Efficiency & Quick Changeover: Features include 5-position fence adjustments and digital position indicators for horizontal and vertical adjustments, making profile changes extremely quick, reducing downtime.
- “Set and Forget” Automation: The 390 can automatically “hog out” (machine) arched panels, increasing efficiency and reducing the need for manual shaping labor.

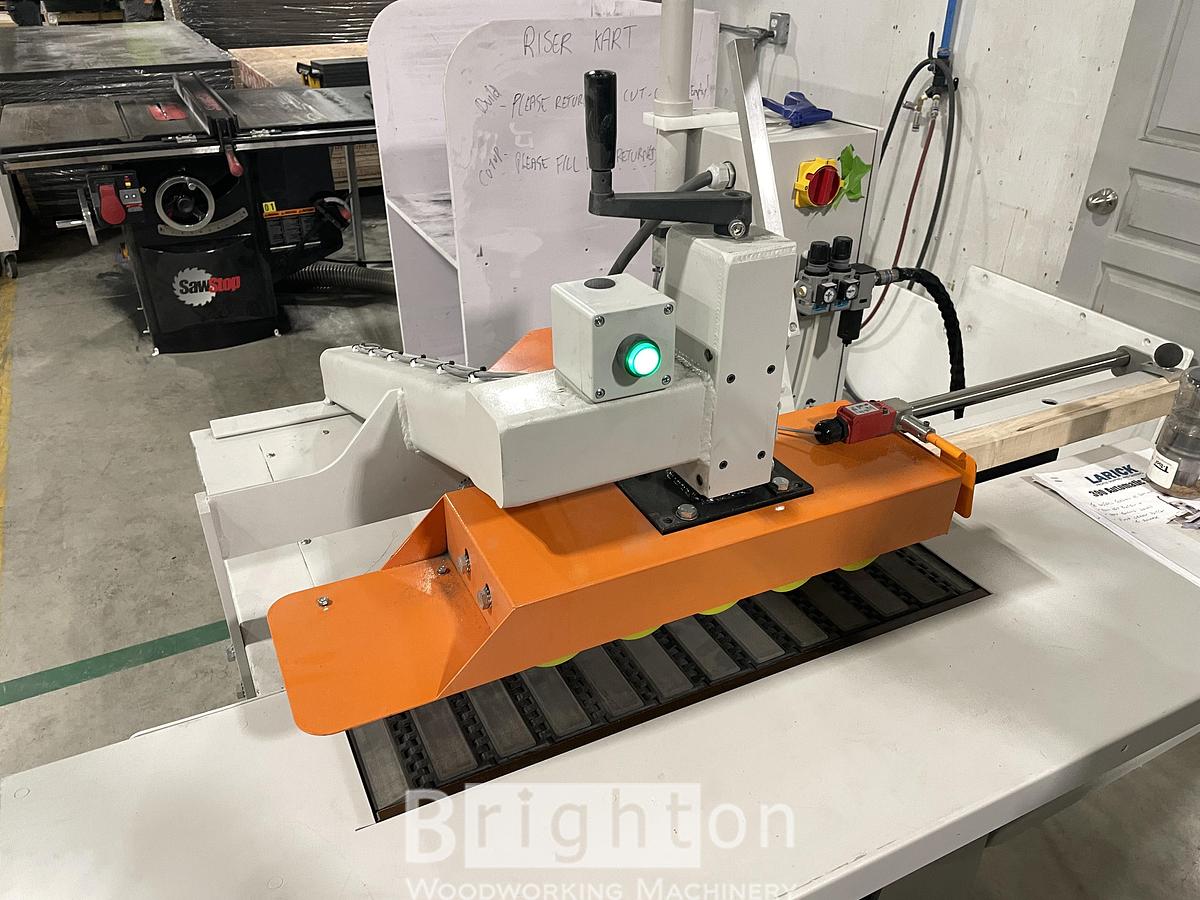

- Built for Reliability: Uses tried-and-proven technology from the Larick 410 shaper/sander, including a 6-inch wide conveyor with staggered hold-down tires for maximum stability.
Specifications:
Shaper Motor: 7.5 HP Inverter Controlled Variable Speed Motor (208–230V, 3PH).
Shaper Speed: 4000 to 7000 RPM (some models spec 650–7000 RPM).
Spindle Size: 1-1/4 Inch (standard).
Feed Speed: Variable up to 30 FPM (feet per minute).
Conveyor Width: 6 Inches.
Maximum Part Thickness: 2 Inches (some sources indicate 3″).
Floor Space: 55″ Wide x 38″ Deep.
Features: Floating head shaper, 5-position chipbreaker fence, and staggered hold-down tires.
