Cefla Panel and Door Flipper #BBM2786

Description

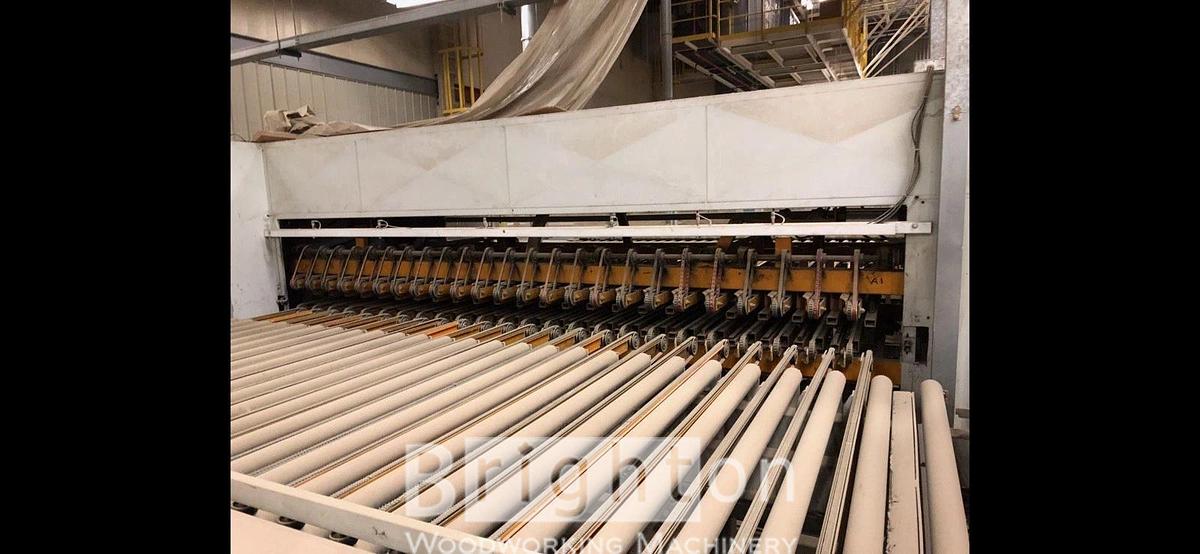

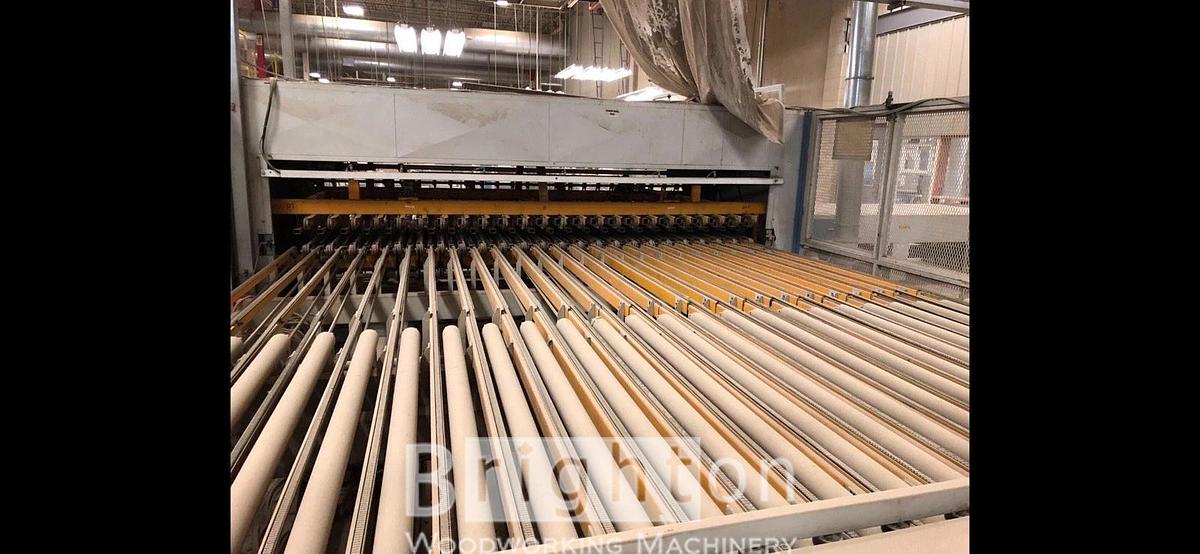

CEFLA PANEL AND DOOR FLIPPER

Why your shop needs the Cefla Pnel and Door Flipper.

Double-Sided Productivity: Eliminate the need for manual handling between coats. This unit automatically turns panels or doors , allowing your line to process both sides in a single pass for multiple-coat applications.

Versatile Integration: Designed as a combination “Transfer” and “Turn Over” unit, it fits seamlessly into existing flatline spray systems or sanding lines.

Precision Handling: Uses pneumatic clamping to secure pieces without damaging the wet or freshly cured surface, maintaining the high quality standards.

Working Length: 3500 mm
Working width: 1450mm
Distance betweem inlet and outlet axis: 3660
Spacing of belts and hold downs: 140mm
Panel thickness: 5/70 mm
Minimum work table: 895mm
Compressed air consumption: 30 Ni/per cycle {6bar}
Pwer requirements 5.5 KW.
